“BM S-5” Reverse flow offset smoker (2024 edition)

£4,895.00 ex VAT

The latest version of BMS-5 with many upgrades, now with a much larger cooking capacity, the smoking/cooking chamber is longer than the previous version was, and the chamber diameter is wider, we also added a large cabinet smoker/cooker/warmer at the back, on top of the firebox, extended folding chimney stack, insulated and upgraded firebox, fuel basket, upgraded air-intake system for better airflow, lid counterweight, sealed lid and doors to prevent smoke leaks and save on internal temperature, etc.



It’s a heavy-duty, traditional American reverse-flow Smoker, the most popular offset smoker for pubs, bars, restaurants, and street food catering!

                 Charcoal or wood-fired smoker for that authentic smoky flavor

The BM S-5  reverse flow offset smoker expands your horizon of barbecuing to introduce the world of slow smoking, with the smoke drawn into the chamber indirectly to ensure the finished product is moist and tender with a rich smokey flavour.



In Stock!

(Viewing and Collection is available at the store)

DELIVERY: Please ask for a shipping quote and estimate delivery time before purchase!

Please note that the forklift is required on delivery to unload a large pallet from the truck/lorry, the trailer is mounted on the large pallet, also must be good access for HGV vehicles and no traffic restrictions.

(the pallet is too heavy for the Luton VAN tail-lift)

(total weight is 720 kg)



For EU Countries please visit our EU page here:  www.bm-bbq.eu

Product specification
COOKIKNG SMOKING CHAMBER (Horizontal):
Cooking chamber is made in 5mm rolled steel plate
Cooking chamber dimensions: 176cm long and x 75cm in diameter
Chamber includes three pullout food cooking racks (extra racks availabkle for an additional cost)
Bottom cooking rack: 145cm x 68cm
Middle cooking rack: 145cm x 70cm
Upper cooking rack: 145cm x 55cm
Stainless steel drip tray(drain) equiped below the cooking racks to drain the grease and fat out of the chamber, by opening ball valve tap at the bottom
Cooking chamber lid(door) is equipped with two stainless steel easy-read temperature gauges in Fahrenheit and Celsius
Cooking chamber lid(door) sealed with the fiberglas gastet to prevent smoke leaks and for temperature saving
Cooking chamber comes with extended/long folding smoke stack(for easy transportation), and internal damper for airflow and temperature conrol.
Cooking chamber includes folding front shelf made in Stainless Steel
Heavy duty doors locks with cool touch handles

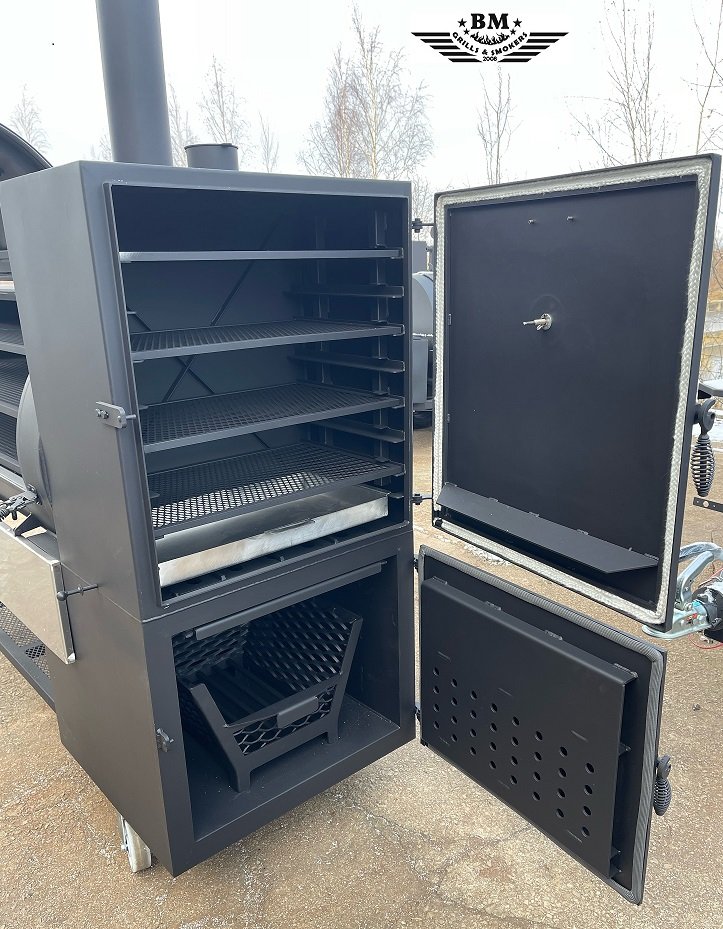

CABINET SMOKER-COOKER-WARMER:
Cabinet dimetions: 73cm Wide x 42cm Depth and 80cm Height
Equiped with four(4) pull out cooking racks (64cm x 39cm)
Drip tray/water tray
Air/heat intake dampers for temperature control
Chamber equiped with own independant chimney stack with adjustable damper
Door is sealed with the fiberglas rope to prevent smoke leaks and for temperature saving
Door is equiped with stainless steel easy-read temperature gauge in Fahrenheit and Celsius
Door lock with th cool touch handle
FIREBOX:
Insulated firebox constructed of 5mm steel plate (internal walls) and 3mm steel plate (external walls) and firebox door made 8mm steel thick plus the heat deflector 5mm thick
Firebox door quipped with air intake dampers for airflow and temperature control
Firebox door sealed with the fiberglas gasked
Firebox includes a NEW type heavy duty charcoal basket.
Door lock with cool touch handle
OTHER INFO:
All new steel plate body construction with all new components and finished in a heat resistant paint
Smoker mounted on the heavy duty square tubing frame with heavy duty castors wheels (with brakes)
The smoker comes with a bottom shelf(storage) made in heavy mesh
Overall length: 235cm
Overall height: 270cm including the extended chimney stack
Overall width: 100cm, including front shelf when its in working(horizontal) position
Total weight: 690KG
Actually, there is a bigger cooking capacity than you can see on our website when scrollin images with the food inn, these was taken with previuos BMS-5 smoker, smaller version.
Fuel: Fire wood, Charcoal
In Stock!
